Fire Extinguisher

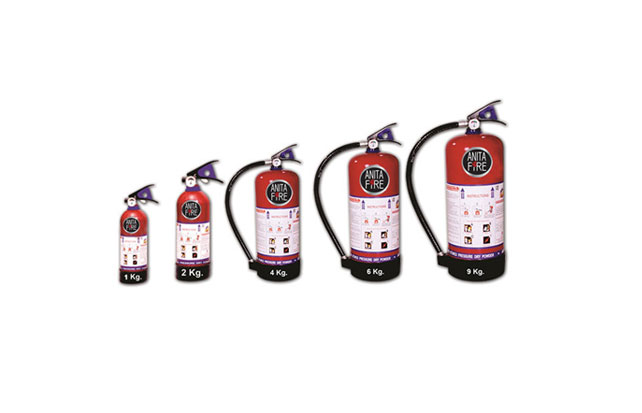

ABC Power Portable Fire Extinguishers (Stored Pressure)
Simple operation & essy to maintain, easy seap with squeeze grip valve , state of the pressure
ABC Power Portable Fire Extinguishers (Stored Pressure) | |||||
---|---|---|---|---|---|
MODEL | FA-1 | FA-2 | FA-4 | FA-6 | FA-9 |
Capacity | 1 | 2 | 4 | 6 | 9 |
Anti-Corrosive Inhilbitor | Epoxy Poleyster Powder Coating | Epoxy Polyester Powder Coating | Epoxy Polyester Powder Coating | Epoxy Polyester Powder Coating | Epoxy Polyester Powder Coating |
Confirming IS Code | 15683 | 15683 | 15683 | 15683 | 15683 |
Type of Extinguisher | Constant Stored Pressure | Constant Stored Pressure | Constant Stored Pressure | Constant Stored Pressure | |
Type of Extinguishing Media | Dry Powder IS 14609 | Dry Powder IS 14609 | Dry Powder IS 14609 | Dry Powder IS 14609 | Dry Powder IS 14609 |
Expellant | Pressurized with N2 gas |
Pressurised With N2 Gas | Pressurised With N2 Gas | Pressurised With N2 Gas | Pressurised With N2 Gas |
Minimum Effective Discharge (%) | 85 | 85 | 85 | 85 | 85 |
Minimum Jet Length (mtrs) | More than 2 mtrs. | More than 2 mtrs. | More than 2 mtrs. | More than 2 mtrs. | More than 2 mtrs. |
Discharge Time (Sec.) | More than 8 Sec. | More than 8 Sec. | More than 8 Sec. | More than 8 Sec. | More than 8 Sec. |
Hydraulic Test Pressure( Kgf/Cm2) | 35 | 35 | 35 | 35 | 35 |
Operating Position | Upright | Upright | Upright | Upright | Upright |
Charge Pressure ( Kgf/Cm2) | 15 | 16 | 16 | 15.5 | 15.5 |
Operating Tempreature Range(C) | (-)10 to (+)55 | 0 to +55 | 0 to +55 | 0 to +55 | 0 to +55 |
Operating Valve | Squeeze Grip with Nozzle |
Squeeze Grip Type With Nozzle | Squeeze Grip Type With Discharge Hose | Squeeze Grip Type With Discharge Hose | Squeeze Grip Type With Discharge Hose |
Fire Rating | 1A & 8B | 1A & 8B | 2A & 21B | 3A &21B | 4A &34B |
